Gaskets & Seals

DURASEAL III-NV PIPE TO MANHOLE FLEXIBLE GASKET

Put A Water-Tight Seal On Your Sanitary Sewer Systems

The DURASEAL™ III-NV is a patented multi-finned flexible gasket which produces a positive water-tight fit wherever a pipe makes contact with a manhole base. It becomes an integral part of the pipe and cannot slip, twist or dislodge.

The DURA-SEAL™ III-NV works on pure compression, thus eliminating the need for installation kits, take-up clamps or additional tools. This makes installation in the field possible in either wet or dry conditions. The contractor simply lubricates the pipe and inserts it into place. This time-saving product provides you with top-quality, increased efficiency and improved cost effectiveness, all in one package.



The DURA-SEAL™ III-NV can accommodate any size (up to 24″) pipe and any material, including asbestos cement, vitrified clay, concrete, cast iron and PVC. It is ideal for manholes, wet wells, valve pits and septic tanks. DURA-SEAL™ III-NV meets or exceeds all material and performance requirements of ASTM C443 and C923. It is covered under one or more of the following patents: Number 3,787,061; Number 3,759,285; and Canadian Patent Numbers 949,094 and 1.018,331. Recent tests certify that DORSALLY™ III-NV can withstand 3760 force lbs. (1880 lbs. each end) with zero leakage. For complete test results, ask one of our representative for Bulletin No. 747448-A (1.1MB).

Let us show you how DURA-SEAL™ III-NV can increase job quality, reduce down-time and enhance your productivity. We even offer a guarantee that is water-tight! Call today to place your order or to receive additional information.



Mandrel/gasket Assembly ready to go on form. Easily assembled by 1 man without special tools.



Complete mandrel assembly fastened to outside manhole mold.



Base assembly with Dura-Seal III-NV in place ready for pouring.



Pouring base



Placing flowline tubes



Secondary pour of sand and cement mix to form inverts



Flowline tubes removed – Inserts hand finished



Finished manhole base complete with Dura-Seal III-NV gaskets.





DURASEAL III PIPE TO MANHOLE FLEXIBLE GASKET

Put A Water-Tight Seal On Your Sanitary Sewer Systems

The DURA-SEAL™ III is a patented multi-finned flexible gasket which produces a positive water-tight fit wherever a pipe makes contact with a manhole base. It becomes an integral part of the pipe and cannot slip, twist or dislodge. If a flat spot of an out-of-round pipe does permit any leakage, DURA-SEAL’s™ simple four-step injection sealant system allows quick and easy repair, on-site. One man inside the manhole can complete the job without disrupting other workers or outside activities.

The DURA-SEAL™ III works on pure compression, thus eliminating the need for installation kits, take-up clamps or additional tools. This makes installation in the field possible in either wet or dry conditions. The contractor simply lubricates the pipe and inserts it into place. This time-saving product provides you with top-quality, increased efficiency and improved cost effectiveness, all in one package.



DURA-SEAL™ III meets or exceeds all material and performance requirements of ASTM C443 and C923. It is covered under one or more of the following patents: Number 3,787,061; Number 3,759,285; and Canadian Patent Numbers 949,094 and 1.018,331. Recents tests certify that DURA-SEAL™ III can withstand 3760 force lbs. (1880 lbs. each end) with zero leakage. For complete test results, ask one of our representative for Bulletin No. 747448-A (1.1MB).

Let us show you how DURA-SEAL™ III can increase job quality, reduce down-time and enhance your productivity. We even offer a guarantee that is water-tight! Call today to place your order or to receive additional information.

Mandrel/gasket Assembly ready to go on form. Easily assembled by 1 man without special tools.



Complete mandrel assembly fastened to outside manhole mold.



Base assembly with Dura-Seal III in place ready for pouring.



Pouring base



 Placing flowline tubes



Secondary pour of sand and cement mix to form inverts



Finished manhole base complete with Dura-Seal III gaskets.



Flowline tubes removed – Inserts hand finished





DURASEAL PUSH-IN PIPE TO MANHOLE GASKET

Put A Water-Tight Seal On Your Sanitary Sewer Systems

The DURA-SEAL™PUSH-IN GASKET is a multi-finned flexible gasket which produces a positive water-tight fit wherever a pipe makes contact with a manhole. It will work with cast or cored holes. No tools or clamping hardware is needed.

The DURA-SEAL™ PUSH-IN works on pure compression, thus eliminating the need for installation kits, take-up clamps or additional tools. This makes installation in the field possible in either wet or dry conditions. The contractor simply lubricates the pipe and inserts it into place. This time-saving product provides you with top-quality, increased efficiency and improved cost effectiveness, all in one package.

Let us show you how DURA-SEAL™ PUSH-IN gasket can increase job quality, reduce down-time and enhance your productivity. Call today to place your order or to receive additional information.





DURA-SEAL 6 FLEXIBLE SEAL

THE LATEST INNOVATION IN SEAL TECHNOLOGY

Dura Seal 6 Installation Instructions

Blackthorn is pleased to introduce Dura-Seal 6. Dura-Seal 6 was developed to meet ASTM C 923-96 specifications for positive, watertight sealing of pipe-to-manhole connections. Test results are available. Click here.



Dura-Seal 6 video (16MB)



Dura-Seal 6 Calculator
(call for password)
*Please temporarily allow pop-ups for this application to work




MAIN APPLICATIONS








SEPTI – SEAL®

FLEXIBLE COMPRESSION GASKET

A QUALITY COMPRESSION SEAL FOR SEPTIC TANKS

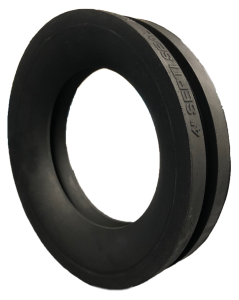

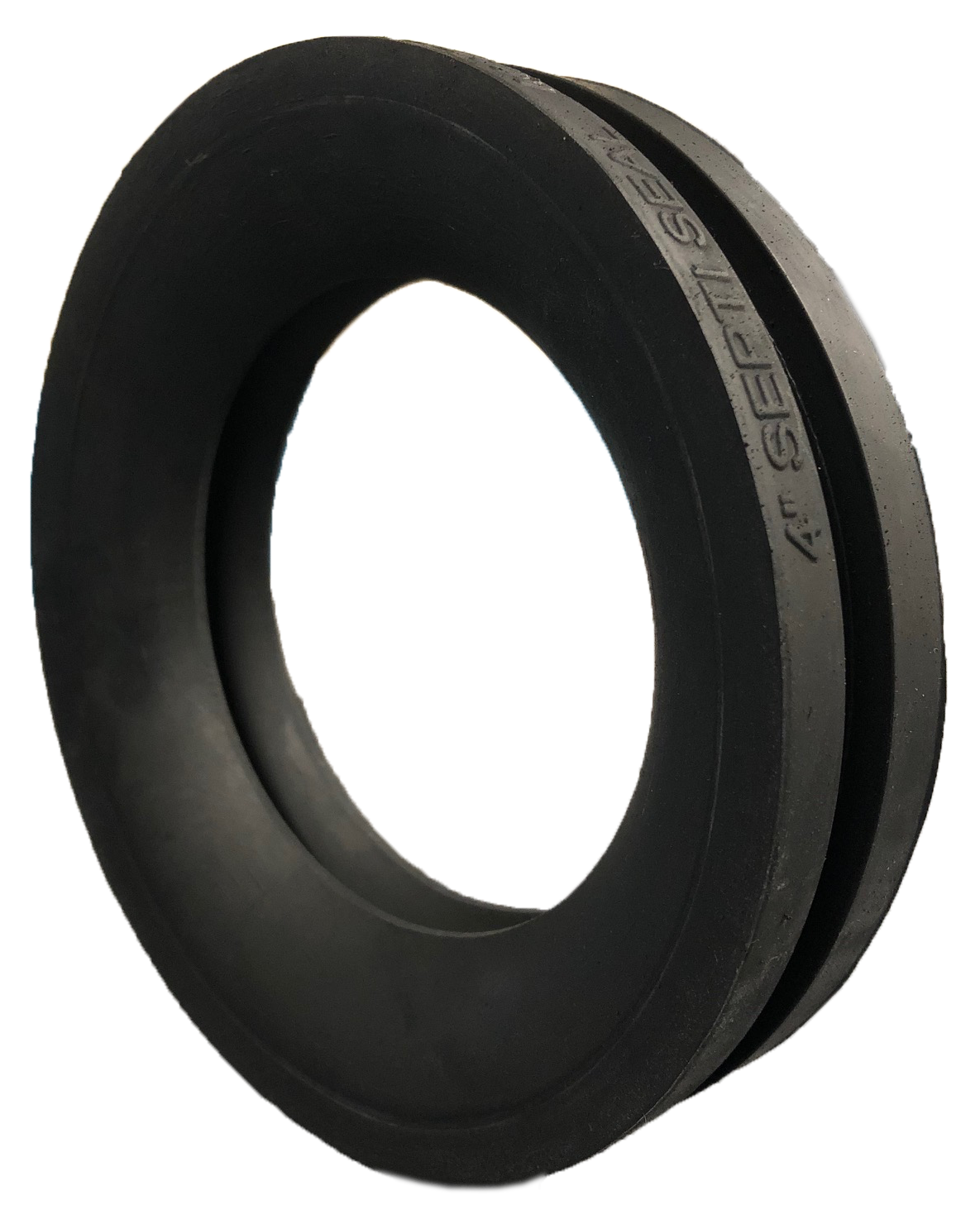

SEPTI-SEAL® is a patented, finned flexible gasket designed specifically for inlets and outlets on septic tanks. It can also be used effectively on other thin wall concrete structures that require a watertight seal. This durable pipe-to-tank connector is cast directly into the tank wall, which insures maximum watertight integrity.

Septic tanks containing SEPTI-SEAL® gaskets have been vacuum-tested and have exceeded the standard 10 inches of mercury required by most engineers. SEPTI-SEAL® gaskets meet all material and performance requirements of ASTM C-923 specifications, for use on septic tank systems. We custom-fit the product to meet your exact needs, for use on a variety of pipe sizes and styles. Please specify pipe O.D. when ordering.





SEPTI-SEAL® Gaskets Meet All Requirements To Satisfy ASTM C-923 Specifications For Use On Septic Tanks!

SEPTI-SEAL® gaskets provide you with a cost-effective, high-quality gasket system. You may obtain additional technical information and pricing by calling us TOLL-FREE!

SEPTI-SEAL® OFFERS MORE THAN JUST A TIGHT FIT!

Cast Into Tank Wall, Gasket Will Not Slip, Twist or Dislodge
Each Gasket is Individually Inspected, Prior To Shipping
Maintains Water-Tight Integrity For Many Years
Quick And Easy To Install

SEPTI-SEAL® is a registered trademark of BLACKTHORN,INC., Clayton, Ohio 45315

ALSO AVAILABLE:
DURA-SEAL ™ III PIPE-TO-MANHOLE GASKETS
Can Increase Your
-* JOB EFFICIENCY
-* PRODUCTIVITY
-* COST-EFFECTIVENESS





PIPE SEALS


PART NUMBER


DESCRIPTION

QTY per box
2 POLY-LD

Low pressure POLY-SEAL Accommodates 2″ through 4″ SCH 40


275
2 POLY-HD35
WATER TIGHT / High pressure POLY-SEAL Accommodates 4″ PVC SDR 35
275
2 POLY-HD40
WATER TIGHT / High pressure POLY-SEAL Accommodates 4″ PVC SCH 40
275





Gasket Holeformers





GASKET MANDRELS (Locators)

Pipe Size
Lifetime Aluminum
Fiberglass
Solid Plastic
Foam

4″
X
X
X
6″
X
X
X
8″
X
X
X
X
10″
X
X
X
X
12″
X
X
X
X
15″
X
X
X
X
18″
X
X
X
X
21″
X
X
X
24″
X
X
X
27″
X
X
30″
X
X
33″
X
X

12″ ALUMINUM BOOT MANDREL
6″ Flatwall
8″ Flatwall
